The NANOGrav 12.5-year Data Set: The Frequency Dependence of Pulse Jitter in Precision Millisecond Pulsars
We analyzed the NANOGrav 12.5-year data set for pulse jitter: individual pulses look different from the very stable average pulse shape, which adds uncertainty to our times of arrival. Pulsar timing experiments must therefore model jitter as a significant source of noise in our Galactic-scale detector. Its dependence on radio frequency had been studied over broad ranges, including in our 9-year data set analysis, but this is the first study of the functional form of that dependence. We detected jitter in 43 of the 48 pulsars analyzed, with 30 showing significant frequency dependence.
The randomness of pulse shapes

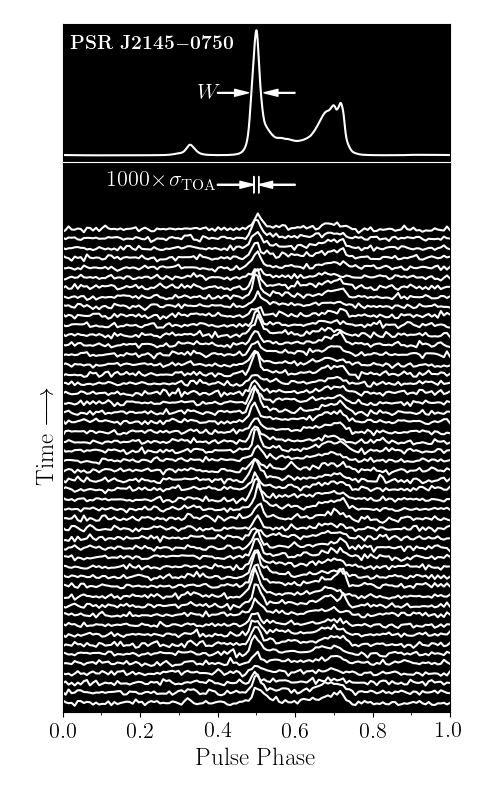

Jitter in PSR J2145−0750. Each trace averages 10 consecutive pulses, yet they still vary around the very stable average pulse at top. From Science with the Next-Generation VLA and Pulsar Timing Arrays.
- The “miracle” of pulsar timing relies on the average pulse shape being very stable. Over decades, we can determine when a set of pulses arrives at our telescopes very precisely.
- Since the discovery of pulsars, it has been known that individual pulses do not resemble the average. The climate of the pulsar magnetosphere is extremely stable, but there is significant weather from one rotation to the next.
- A time of arrival (TOA) comes from fitting a template pulse shape to the data, assuming the data are an exact scaled and shifted copy of the template. Because the average is built from individual pulses of different shapes, that matched-filtering assumption breaks, and we must account for jitter in our TOA uncertainties.
- Characterizing and modeling noise in our timing data is a prime focus of NANOGrav’s Noise Budget working group.
The NANOGrav 12.5-year data set

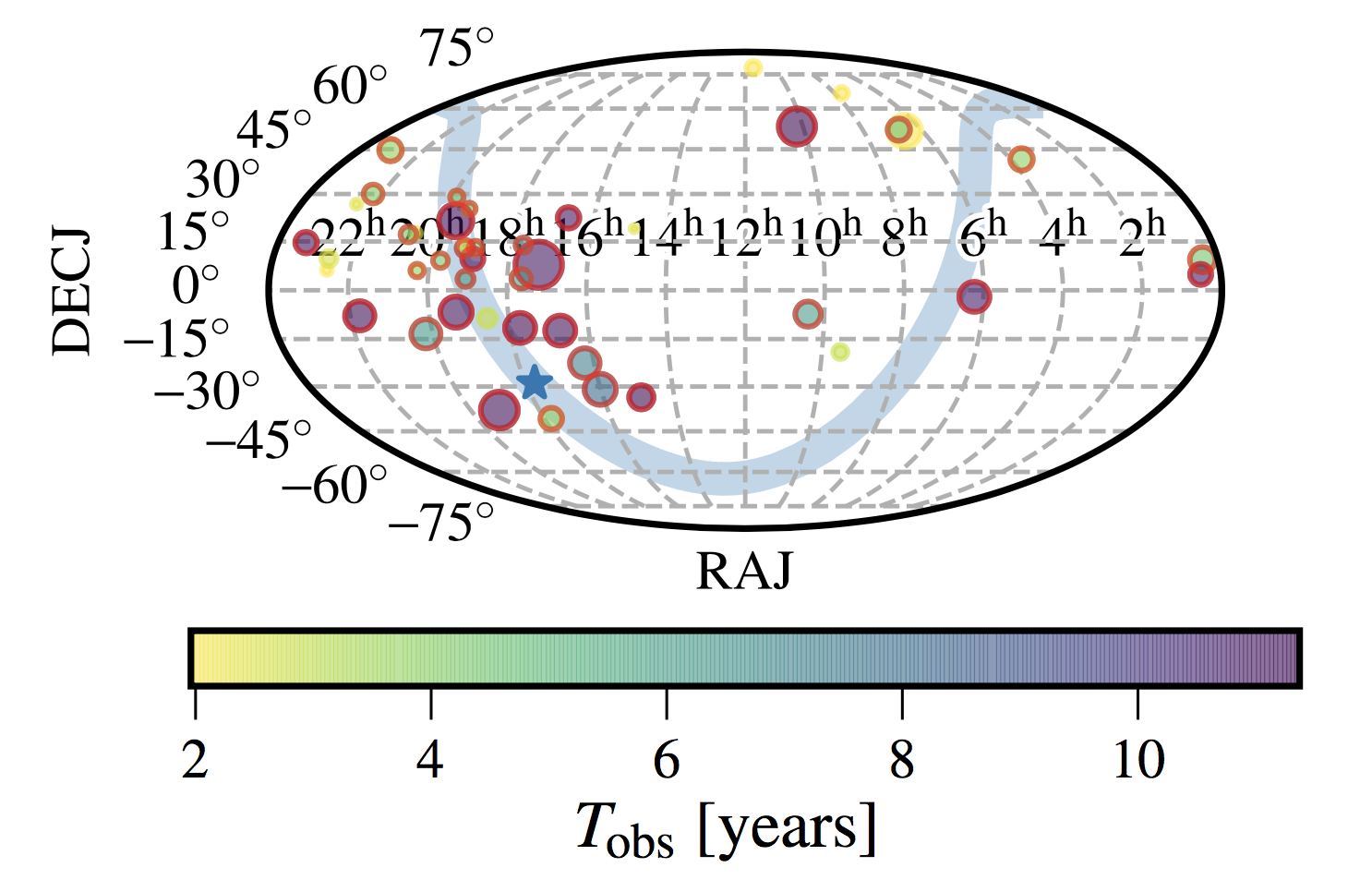

Sky map of pulsars in the 11-year data set. Circle areas are proportional to the number of TOAs; color shows the timing baseline. The 12.5-year data set adds three more pulsars.
- The data set contains radio pulse TOAs and timing models for 48 millisecond pulsars.
- Observations span roughly 12.9 years, from July 2005 to June 2017. J1744−1134 has the longest baseline at 12.87 years; J1713+0747 has the most data, with 40,000 TOAs.
- Observations used the 100-m Robert C. Byrd Green Bank Telescope of the Green Bank Observatory and the 305-m William E. Gordon Telescope at Arecibo Observatory.
Short-term timing residuals

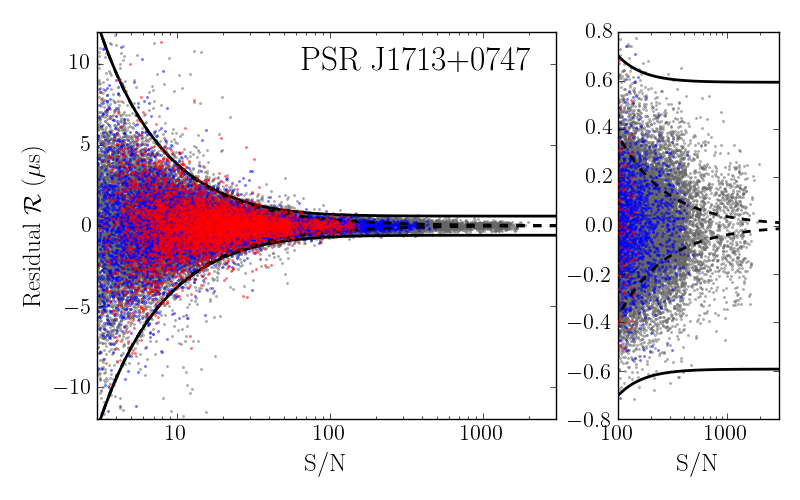

Short-term timing residuals against pulse S/N for PSR J1713+0747 at 820 MHz (red), 1400 MHz (gray), and 2300 MHz (blue). Without jitter, the spread would shrink to zero at high S/N; instead it levels off.
- Rather than use the final TOAs, we returned to the calibrated profiles at finer time resolution, typically 1- or 2-minute integrations, to probe jitter on short timescales, using the NANOGrav package PyPulse.
- For each observation we fit a small correction to the timing model and removed all frequency-dependent delays (unknown dispersion, profile evolution, and more), leaving short-term timing residuals.
- Plotted against S/N, the residuals’ spread would vanish at high S/N if there were no jitter. Instead it stays constant, the signature of the random nature of jitter.
- The interstellar medium also changes pulse shapes slightly. We predicted the amplitude of this scintillation noise from scattering measurements, as in our 9-year analysis.
Modeling the frequency dependence

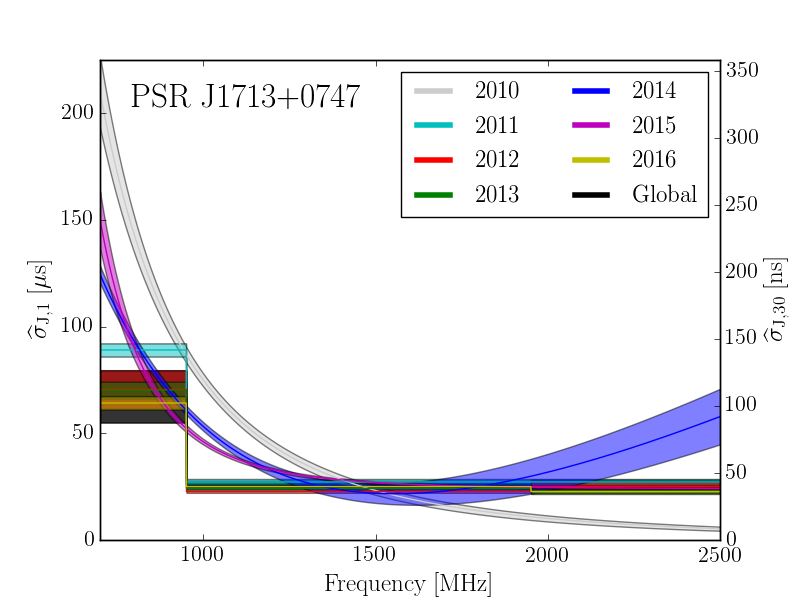

The most preferred jitter models for PSR J1713+0747, fitting each year independently.
- We compared five models for the frequency dependence: constant with frequency, constant within each band, power law, power law plus a constant, and a log polynomial.
- Parameters came from maximum-likelihood fits built on the emcee Markov chain Monte Carlo package.
- Jitter was significant in 43 of 48 pulsars, compared with 22 of 37 in our previous 9-year analysis, and significant frequency dependence appeared in 30 pulsars.
- Comparing models with the Bayesian Information Criterion, the power law was most often preferred.
The statistics of jitter

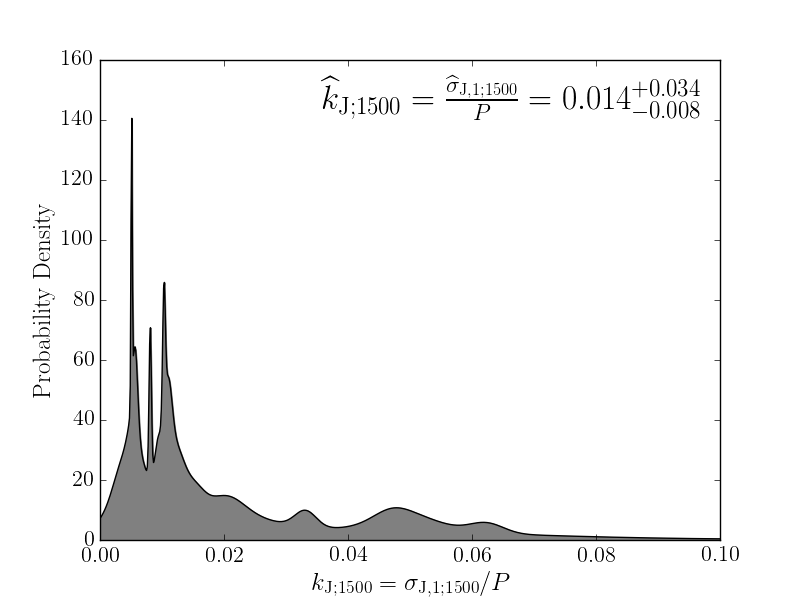

Distribution of the jitter parameter: the single-pulse jitter amplitude divided by the pulse period.
- The amplitude varies by pulsar, but a good rule of thumb is that jitter timing variations are about 1% of the pulse period.
- Jitter correlates with pulse width and with the number of components in the profile. Because pulse shapes are complex, our method condenses the timing variations into one number per pulsar per frequency.
- For the bright pulsar B1937+21 we compared jitter in the main pulse and interpulse and found them largely consistent.
- We do not expect jitter to change with time, but tested this in two of our best pulsars. Slight variations in J1909−3744 are likely due to radio-frequency interference; if so, its intrinsic jitter may be lower, and the pulsar even more precise than we can currently measure.
Future prospects for noise modeling

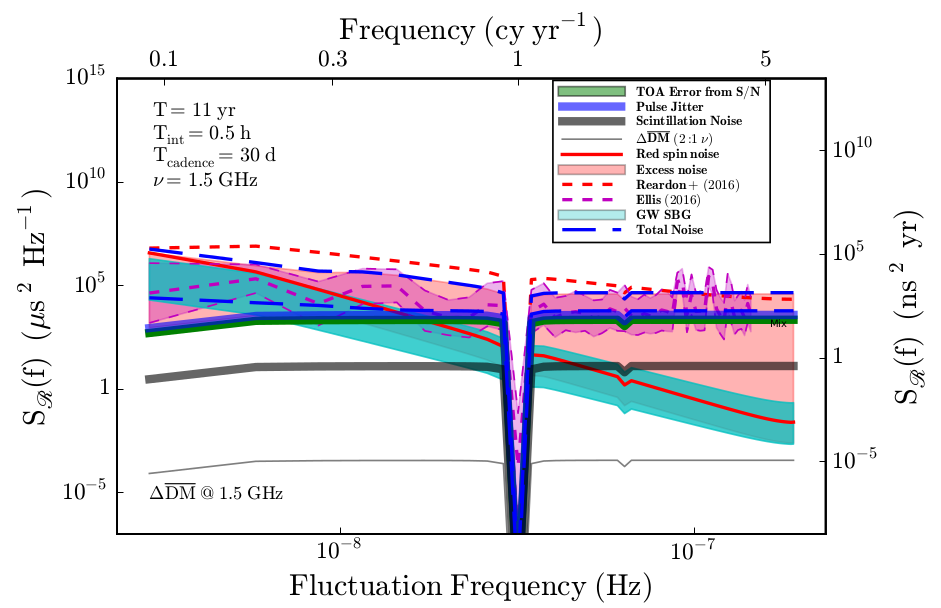

Noise spectrum for PSR J1713+0747, summarizing physical effects studied in NANOGrav pulsars, including jitter. Courtesy J. Cordes.
- As larger telescopes come online, jitter, not receiver noise, becomes the dominant TOA uncertainty. A bigger dish or a wider-band receiver does not reduce it; only observing longer does. Splitting arrays into sub-arrays may help in some cases.
- Because jitter is so dominant, it matters for the design of new telescopes, including concepts for a dedicated pulsar timing array telescope.
- Within the International Pulsar Timing Array, telescopes could split the work: some observing jitter-dominated pulsars while the most sensitive focus on weaker ones.
- As with LIGO, we must understand every source of noise and build a noise budget to make a believable detection of gravitational waves.
Questions about this paper? Contact the corresponding author, Michael T. Lam, Ph.D. .
